Database transfer - Configuration Wizard

The Portal Configuration wizard can be used to transfer data from the Apache Derby Database to the target database.

The Portal Installer allows to launch the Configuration wizard once portal install is complete, you can use that option or if you want you can go to wp_profile/PortalServer/wizard directory and launch wizard by executing configwizard.bat.

• Once the wizard is launched, you should get a screen like this, select Transfer data to other database and click next




• On the next screen, wizard will ask you to enter your administrative userid and password




• On the next screen it will ask you about which is your source directory, in my case i am shifting from default IBM Derby so it is IBM Derbry




• On the next screen it will ask you what is your target database type. I am moving data to my IBM DB2 on my local machine so it is IBM DB2




• On the next page it will ask you more information about the target database, such as where it is located, DB2 servers host name, port




• After that it will start asking you information specific to each of the portal domains, this is how my customization domain screen looks like

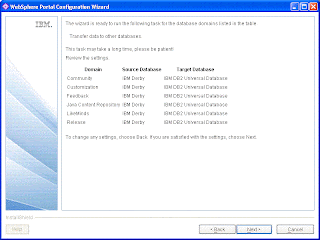

• On next few screen it will ask you same information for customization,jcr, likeminds and release database. At the end it will show you the summary screen like this



When you click Next on the last screen it will take the information that you entered on the wizard and generate parent.properties file in wp_profile/PortalServerwizard directory with that information. This is how my parent.properties file looks like

db2.DbDriver=com.ibm.db2.jcc.DB2Driver
db2.DbLibrary=C:/IBM/SQLLIB/java/db2jcc.jar;C:/IBM/SQLLIB/java/db2jcc_license_cu.jar
db2.JdbcProviderName=wpdbJDBC_db2
source.release.DbType=derby
release.DbType=db2
release.DbName=wpsdb
release.DbUser=db2admin
release.DbSchema=release
release.DataSourceName=wpdbDS_release
WasUserid=uid=wasadmin,o=defaultWIMFileBasedRealm
release.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
release.DbPassword=db2admin
WasPassword=wasadmin
source.likeminds.DbType=derby
likeminds.DbType=db2
likeminds.DbName=wpsdb
likeminds.DbUser=db2admin
likeminds.DbSchema=likeminds
likeminds.DataSourceName=wpdbDS_likeminds
likeminds.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
likeminds.DbPassword=db2admin
source.jcr.DbType=derby
jcr.DbType=db2
jcr.DbName=wpsdb
jcr.DbUser=db2admin
jcr.DbSchema=jcr
jcr.DataSourceName=wpdbDS_jcr
jcr.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
jcr.DbPassword=db2admin
source.feedback.DbType=derby
feedback.DbType=db2
feedback.DbName=wpsdb
feedback.DbUser=db2admin
feedback.DbSchema=FEEDBACK
feedback.DataSourceName=wpdbDS_feedback
feedback.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
feedback.DbPassword=db2admin
source.customization.DbType=derby
customization.DbType=db2
customization.DbName=wpsdb
customization.DbUser=db2admin
customization.DbSchema=customization
customization.DataSourceName=wpdbDS_customization
customization.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
customization.DbPassword=db2admin
source.community.DbType=derby
community.DbType=db2
community.DbName=wpsdb
community.DataSourceName=wpdbDS_community
community.DbUser=db2admin
community.DbSchema=community
community.DbUrl=jdbc:db2://localhost:50000/wpsdb:returnAlias=0;
community.DbPassword=db2admin


It will take this information and execute ConfigEngine.bat database-transfer -DparentProperties=wp_profiles/PortalServer/wizard/parent.properties command to start the configuration.

This process will take some time to complete
